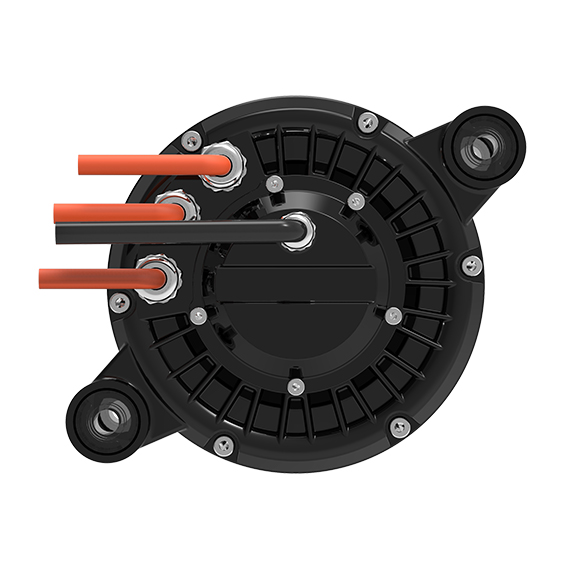

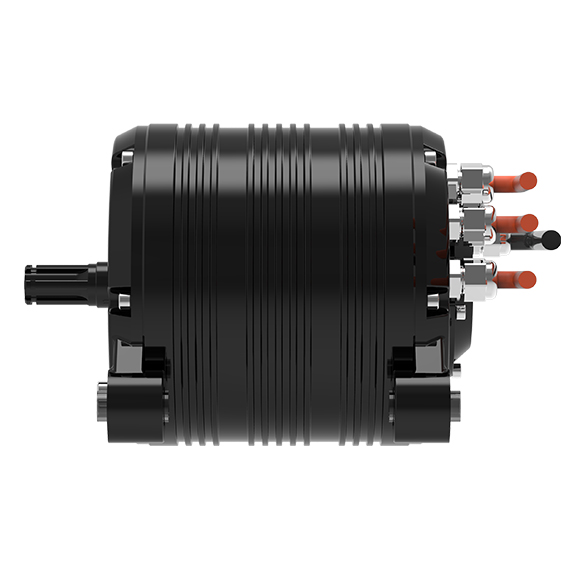

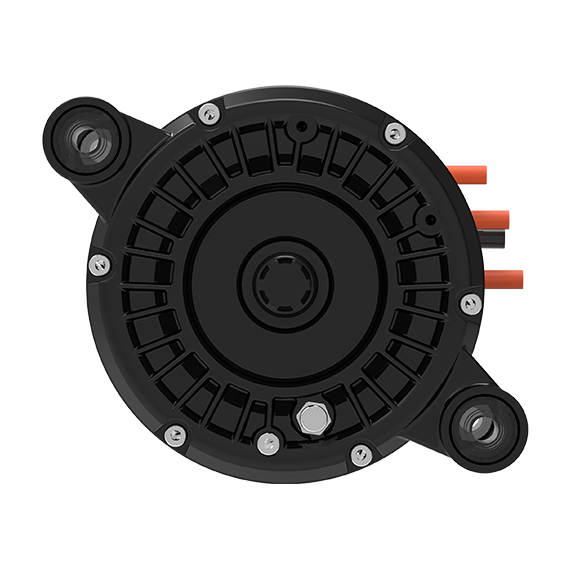

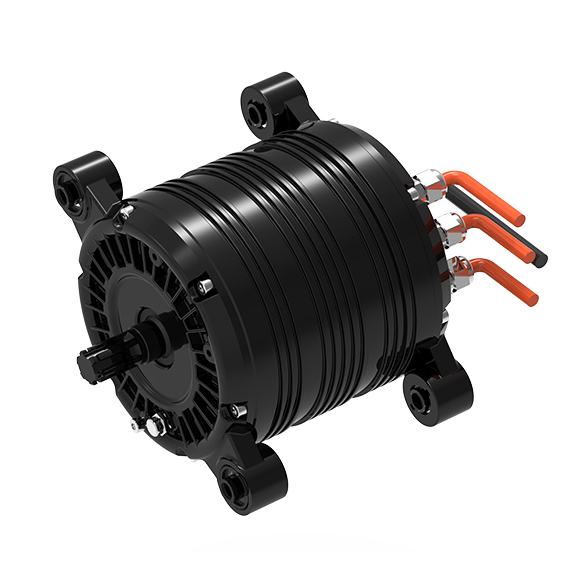

HH4V中置电机
金宇星——全球领先的电动轻型车电机专家
产品参数:
工作电压(V): 44-96
额定功率(W): 1000-2000
峰值功率(W): 1500-4000
额定转速(rpm): 1000-2000
峰值扭矩(N.m): 30-50
峰值效率(%): ≥90%
防护等级(IP): 67
绝缘等级: H
传感器类型: 绝对值磁编码
温度检测方式: PT1000
齿轮减速比:
Working voltage (V): 44-96
Rated power (W): 1000-2000
Peak power (W): 1500-4000
Rated speed (rpm): 1000-2000
Peak torque (N.m): 30-50
Peak efficiency (%): ≥90%
Protection level (IP): 67
Insulation level: H
Sensor type: Absolute value magnetic encoder
Brake type: PT1000
Gear Ratio:
产品尺寸:
安装孔直径: 4-Φ10
轴端外径: Φ17(0.-0.21)
内花键参数: 6*Φ16Φ20*4
轴端至端盖高度: 45.3
轮廓最大外直径: Φ152
轮廓最大高度: 167.3
吊耳中心距离: 185.8
Installation hole diameter: 4-Φ10
Outer diameter of shaft end: Φ17(0.-0.21)
Internal spline parameters: 6*Φ16Φ20*4
Height from shaft end to end cover: 45.3
Maximum outer diameter of contour: Φ152
Maximum height of the profile: 167.3
Distance between lifting eye centers: 185.8
